| Item No.: | FY159 |
| Description: | 10 in 1 Mutli-game | | | | |
| Country of origin: | China | | | | | | |
| Component | Specification | | | | | | |
| Table Size | 122 x 60 x 83cm |
| Football playing surface dimensions | 107 x 57.6cm |
| Lamination of soccer aprons | Outside of side & end aprons with blue graphics paper laminated,
inside of side & end aprons with blue paper laminated, both sides
color are same. Same as signed sample. With black PVC edge. |
| Football table side aprons | 16,5 x 1,27cm (Thickness) MDF (E1 or E0) . pre-drilled holes, Ball
entry and rod whole covers |
| Ball entry: | 2 plastic ball entry rings, PP black, postion on side aprons, 35cm
dia. Postion: Distance top edge of the side panel 25mm. |
| Rod bushing: | 16pcs black PP rod bush |
| Soccer table end aprons | 16,5 x 1,27cm MDF (E1 or E0) with blue graphics paper lamination.
pre-drilled holes ball, entry and rod whole covers |
| Football goal: | MDF goal with blac PVC surrounding. |
| Football goal box: | 2pcs Plastic goals( 2 pieces of assembly structure) with manual
scoring (white numerals and red score marker) on the both end of
the end panels. Size: 21.7cm L* 8.7cm W * 13cm H |
| Manual scorers | 2 pieces black plastic manual scoring with numbers and red score
marker on the goal boxes, size: 14.5cm L * 2.5cm W |
| Apron corner | N/A |
| Soccer table playfield | 1080mm x582mm x 3m (Thickness) MDF (E1 or E0) with green PVC
lamination & white print, Lifted corner. Same as the signed sample. |
| Playfield Support Bars | 2 pieces of 15mm MDF, pre-drilled holes , Size: 576mm * 15mm |
| Billiards Table Dimensions: | 106.5 x 57.7 x 71.7cm |
| Hockey &Table Tennis Table Dimensions: | 98,5 x 50 x 0,47cm MDF both sides with PVC lamination, with hockey
and table tennis graphics |
| Hockey goal | 2pcs red plastic hockey goal with manual scorer with white number.
17.6cm L* 4.8 cm W |
| Bowling Shuffleboard/ chess + draughts + backgammon | 80 x 38 x 0.32cm MDF both side with PVC lamination |
| Billiards Table Playing Court: | 0,475cm) MDF with green nylon cloth. |
| Billiard Table Top Rails | MDF with rubber bumper | | | | | | |
| Billiards table side & end aprons: | 105.8cm * 12,2 x 1,27cm MDF with yellow paper laminated. With
customer's logo 4U NIQ |
| Legs | Square legs, 7.5 * 7.5 x 1.2cm thickness MDF (E1 or E0) with black
PVC lamination |
| Side leg panels | N/A |
| End leg panels | N/A |
| Leg levellers | 4 pieces leg levellers, 3.8cm diameter, black |
| Player rods | 8 pieces of 12.7mm (thickness 0.9mm) chrome plated hollow steel
rods, 4pcs rods with 3holes with size 924mm, 2pcs rods with 2 holes
with size 1010mm, 2pcs rods with 5 holes with size 859mm |
| Player rod end caps | 8 pieces of PVC end cap |
| Player | 22 pieces (3-5-2-1) multicolor un-assemble players , colors see
Carromco standard, Same as signed sample. Size:105mm L |
| Bumpers | 16 pieces of rubber bumper, black |
| Stop rings | 4pcs black plastic stop rings, Attached by bolt and nut. |
| Washers | 16 pieces of washer, black |
| Hand grips | 8 pieces soft PVC hand grips, black, Size: 9.5cm L. Same as signed
sample. |
| Soccer accessories | Soccer | 2 balls - Black/white, 32mm dia. |
| Billard | 1 Set with 16 billiard balls: 1-1/2"(38mm), 1 triangle, 2 cues:
36"(91,4cm) No brush and chalk! |
| Glide Hockey | 2 pushers (red) - 5.7cm DIA x 5.5cm H , 2 pucks (red) - 5cm DIA |
| Ice Hockey | 2 Ice hockey pusher, black |
| Table tennis | 1 table tennis net 46cm L x 7.5cm , 2 table tennis posts 5mm *
100mm, 2 table tennis paddles, 2 table tennis balls -size: 4cm. |

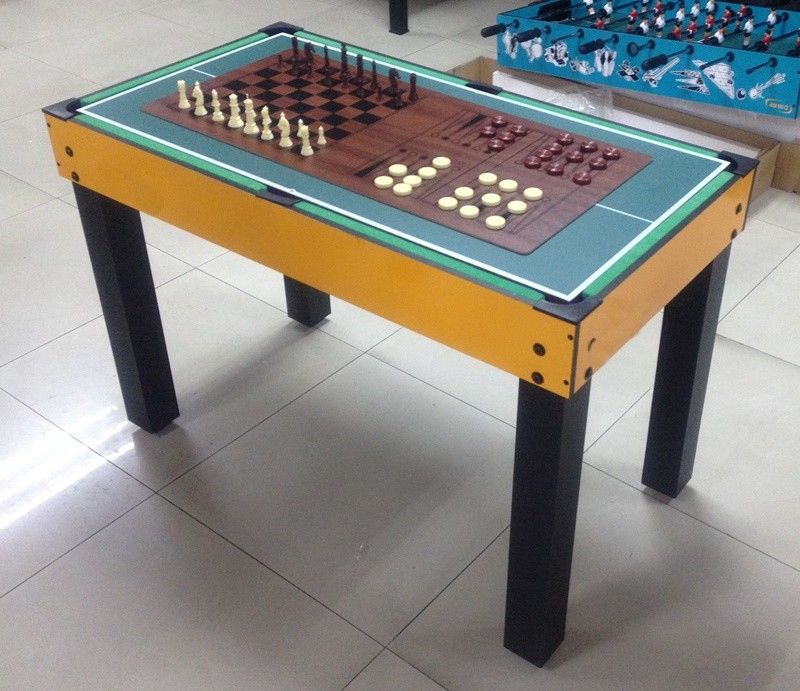

| Chess | 1 chess set, 16 ivory players, 16 brown players |
| Backgammon | 1 backgammon set: 15 ivory coins (2.9cm dia. x 0.65cm H), 15 brown
coins (2.9cm dia x 0.65cm H), 1 dice cup, 5 dices (1-6), 1
backgammon dice |
| Draughts | Uses backgammon coins and chess playfield for draughts. |

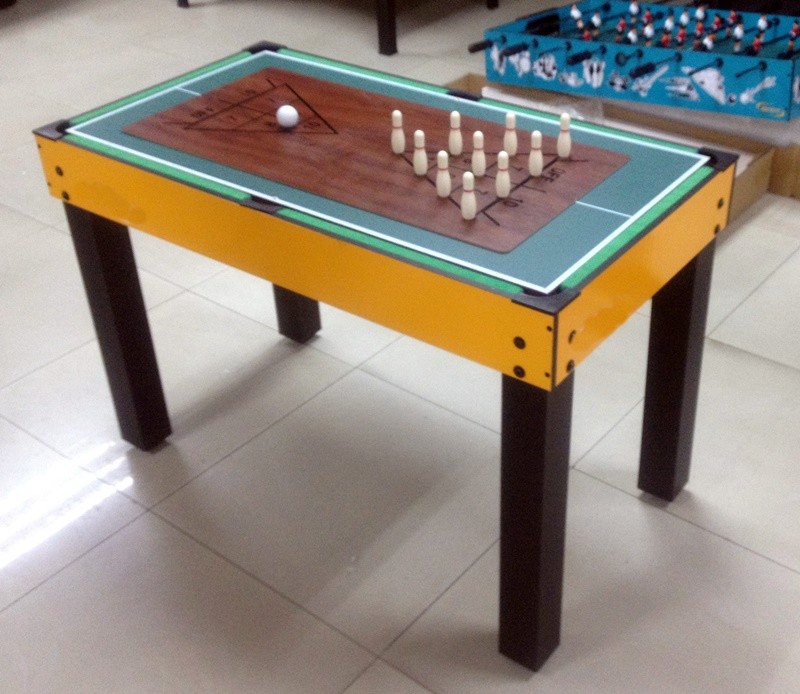

| Bowling | 1 bowling set with 10 figures white with red ring - size: 1.8 cm
dia (base) x 7cm H and 1 ball in white - size: 3.5cm dia |
| Shuffle | 3 red shuffleboard coins + 3 blue shuffleboard coins (Size: 2.4cm
DIA x 0.7cm H) |
